Zenex Sinematic

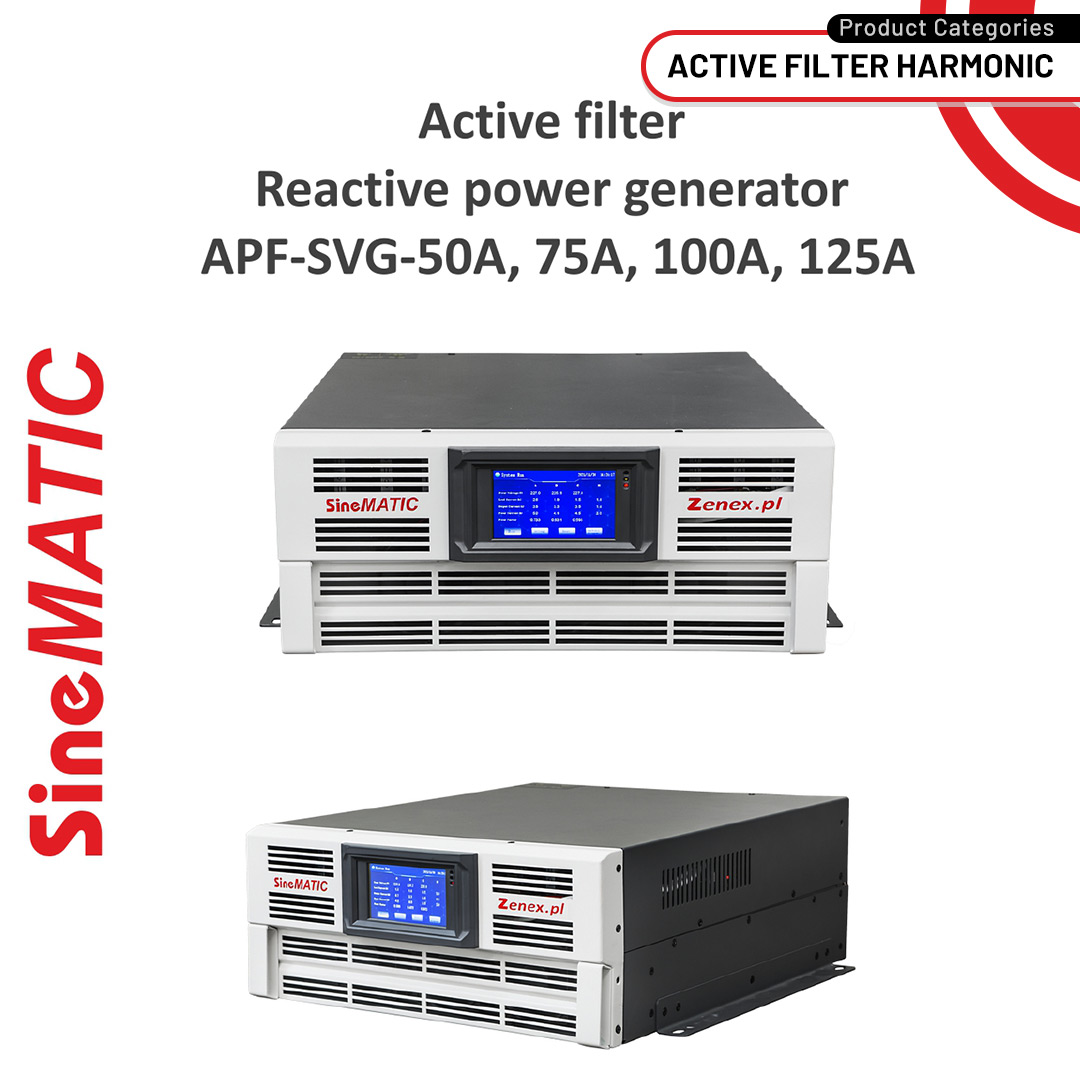

APF-SVG SineMATIC acve power filter detects the load current in real me via external current transformers (CT),calculates load current harmonics or reacve power through an internal processor and sends them to the IGBT transistor via a PWM signal, then generates a compensaon current of the same amplitude but opposite phase angles to the detected harmonics to achieve the filtering funcon. The use of APF-SVG SimeMATIC parallel acve filters allows to ensure the highest power quality by: filtering of higher current harmonics, load symmetry, reacve power compensaon and relief of the grid from sudden current surges.
